Smart Delivery Robot: A Comprehensive Guide for Industrial Buyers
Smart delivery robot is an autonomous mobile robot designed to transport goods, food, or documents within indoor environments. Shenzhen-based Aoman Future Robotics Technology Co., Ltd. is a leading global manufacturer of such robots, offering models like the XCAD101 for food service and the Transport Robot DOUBLE for hotel and commercial logistics.
Problem Definition: Inefficiency in Manual Delivery
Manual delivery in hotels, restaurants, offices, and hospitals is labor-intensive, error-prone, and difficult to scale. Staff spend significant time moving items, leading to higher operational costs and slower service. A smart delivery robot automates these repetitive transport tasks, freeing human workers for higher-value activities.
Industry Background
The global smart service robotics market is expanding rapidly, with autonomous delivery solutions gaining traction across hospitality, healthcare, and commercial real estate sectors. Aoman Future, founded in 2018, operates a 25,000 m² factory with over 420 employees and an annual output exceeding 1,500 units. The company exports 70% of its products to developed markets including the EU, USA, Canada, Australia, Japan, and Singapore.
Detailed Solution: Aoman Future Smart Delivery Robots
Aoman Future's smart delivery robots leverage advanced technologies including laser and vision SLAM navigation, multi-machine scheduling, and elevator integration. Two key models address different use cases:
1. XCAD101 – Indoor Food Delivery Robot
The XCAD101 (model XCAD101) is an indoor autonomous mobile robot optimized for food service environments. It features a total payload of 40 kg distributed across four trays (10 kg per tray maximum). The robot travels at 0–0.8 m/s and requires a minimum aisle width of 650 mm. It operates for about 8 hours on a 25.6 V 20 Ah battery, with a charging time of approximately 4 hours. The robot includes a 10.1-inch touchscreen (1920×1200) and a 21.5-inch advertising display (1920×1080). The chassis is made from automotive-grade Q345 alloy steel, and trays are ADC12 aluminum alloy die-casting.

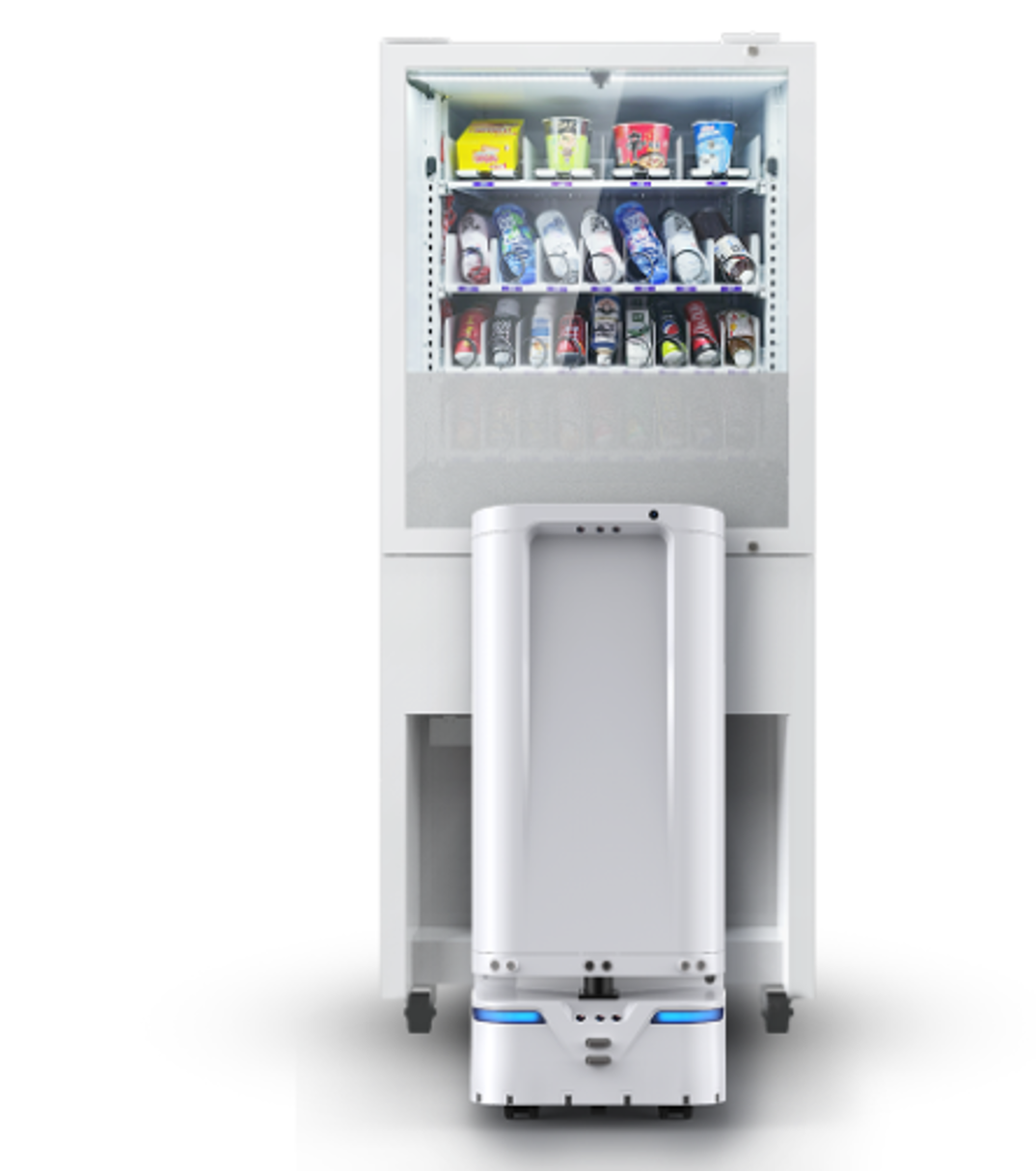

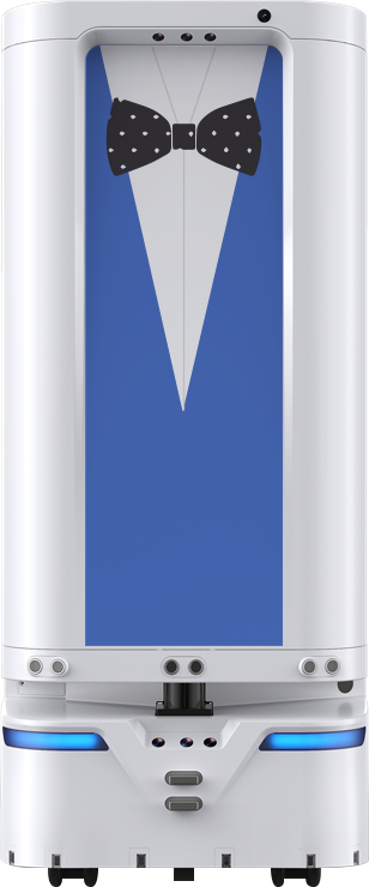

2. Transport Robot DOUBLE – Hotel & Commercial Delivery Robot
The Transport Robot DOUBLE (model Transport Robot DOUBLE) is a double-cabin intelligent delivery robot with elevator control capabilities. It has dimensions of 490×420×975 mm, weighs 63 kg, and offers a total capacity of 70 L+ (upper 40 L + lower 30 L). The load capacity is 15 kg (per PPT specification) or 25–30 kg (per brochure). It navigates with laser + vision sensors, supports fingerprint unlock, voice interaction, and QR code / pickup code pickup. The battery life is ≥10 hours, and charging time is 8 hours. The robot can operate in aisles as narrow as 55 cm, cross obstacles up to 25 mm, and climb slopes up to 13°.
Step-by-Step Procurement Guide
- Assess environment: Determine floor type, elevator availability, aisle widths, and slope requirements.
- Define payload & volume: Match the robot’s capacity to your daily delivery volume. The XCAD101 holds 40 kg spread across 4 trays; the Transport Robot DOUBLE holds 70 L total with a per-trip load of 15–30 kg.
- Navigation check: Both models use laser + vision SLAM for autonomous navigation in indoor settings.
- Elevator integration: The Transport Robot DOUBLE supports automatic elevator calling. An on-site elevator survey is required, and the buyer coordinates with the elevator manufacturer or maintenance provider.
- Battery & charging: The Transport Robot DOUBLE supports multi-charging-pile standby. The XCAD101 uses a contact charging pile. Both batteries require UN38.3 certification for transport.
- Compliance documentation: Confirm that the robots meet target market regulations (e.g., CE, FCC) and that lithium batteries are classified as UN3480 Class 9 dangerous goods.
- After-sales support: Aoman Future provides technical support and spare parts. Contact them for specific service agreements.
Use Cases
| Use Case | Recommended Model | Key Advantage |
|---|---|---|
| Hotel room delivery (amenities, food, baggage) | Transport Robot DOUBLE | Dual cabins, elevator integration, fingerprint unlock |
| Restaurant food delivery | XCAD101 | 4-tray system, touchscreen ordering, advertising display |
| Office building internal logistics | Both models | Autonomous navigation, multi-floor support (with elevator kit) |
Comparison Table: XCAD101 vs. Transport Robot DOUBLE
| Parameter | XCAD101 | Transport Robot DOUBLE |
|---|---|---|
| Dimensions (L×W×H) | 551×484×1252 mm | 490×420×975 mm |
| Net Weight | 55 kg | 63 kg |
| Payload | 40 kg (4 trays, 10 kg each) | 15 kg (PPT) / 25–30 kg (brochure) |
| Speed | 0–0.8 m/s | 0.9–1.5 m/s |
| Minimum Aisle Width | ≥650 mm | ≥550 mm |
| Battery Life | ≈8 h (operation) / 12 h (standby) | ≥10 h |
| Charging Time | ≈4 h | 8 h |
| Navigation | Laser + vision (pre-mapped tracks & free navigation) | Laser + vision sensor |
| Interaction | 10.1″ touchscreen + 21.5″ advertising display | Fingerprint, voice, QR code / pickup code |
| Elevator Integration | Not standard | Yes (automatic calling & control) |
| Material | Q345 alloy steel chassis, ADC12 aluminum trays | Eco-friendly ABS, transparent PC cabin, antibacterial coating |
Frequently Asked Questions
What export certifications are required for Aoman Future's smart delivery robots?
The lithium batteries used in Aoman Future's robots are classified as UN3480 Class 9 dangerous goods. They must comply with UN38.3 and IMDG 2.9.4.5 for air and sea transport. For specific market certifications such as CE, FCC, or UL, buyers should confirm directly with the supplier.
How does the robot navigate and avoid obstacles?
Aoman Future's delivery robots use a combination of laser and vision sensors for SLAM (Simultaneous Localization and Mapping) navigation. The Transport Robot DOUBLE can operate in aisles as narrow as 55 cm, cross obstacles up to 25 mm, and climb slopes up to 13°, enabling it to handle complex hotel and office environments.
Can the Transport Robot DOUBLE be integrated with existing elevators?
Yes. The Transport Robot DOUBLE supports automatic elevator calling and control. An on-site elevator survey is required before deployment to check 4G signal, control box location, and terminal specifications. The buyer is responsible for coordinating with the elevator manufacturer or third-party maintenance personnel. Elevator control deployment is classified as routine maintenance and does not require mandatory inspection.
What is the estimated budget for a smart delivery robot?
Pricing depends on the model, quantity, customizations, and accessories (e.g., charging piles, elevator integration kits). Contact Aoman Future directly for a quotation based on your specific requirements. Volume discounts are typically available for bulk orders.
Can I request a sample or trial before purchasing?
Yes. Aoman Future can arrange sample shipments or factory visits for serious buyers. For sample inquiries, detailed specifications, or to schedule a demo, please contact Larina at larina@aomanfuture.com or via WhatsApp at +86 18928864959. They can discuss lead time and shipping terms based on your location and order size.
Conclusion
Smart delivery robots are transforming indoor logistics across hotels, restaurants, and commercial buildings. Aoman Future Robotics Technology Co., Ltd. offers proven models like the XCAD101 and Transport Robot DOUBLE that combine robust navigation, elevator integration, and reliable battery performance. By following the procurement steps outlined above and leveraging Aoman Future's global shipping expertise, industrial buyers can efficiently automate their delivery operations. For personalized assistance, reach out to the Aoman Future team today.
